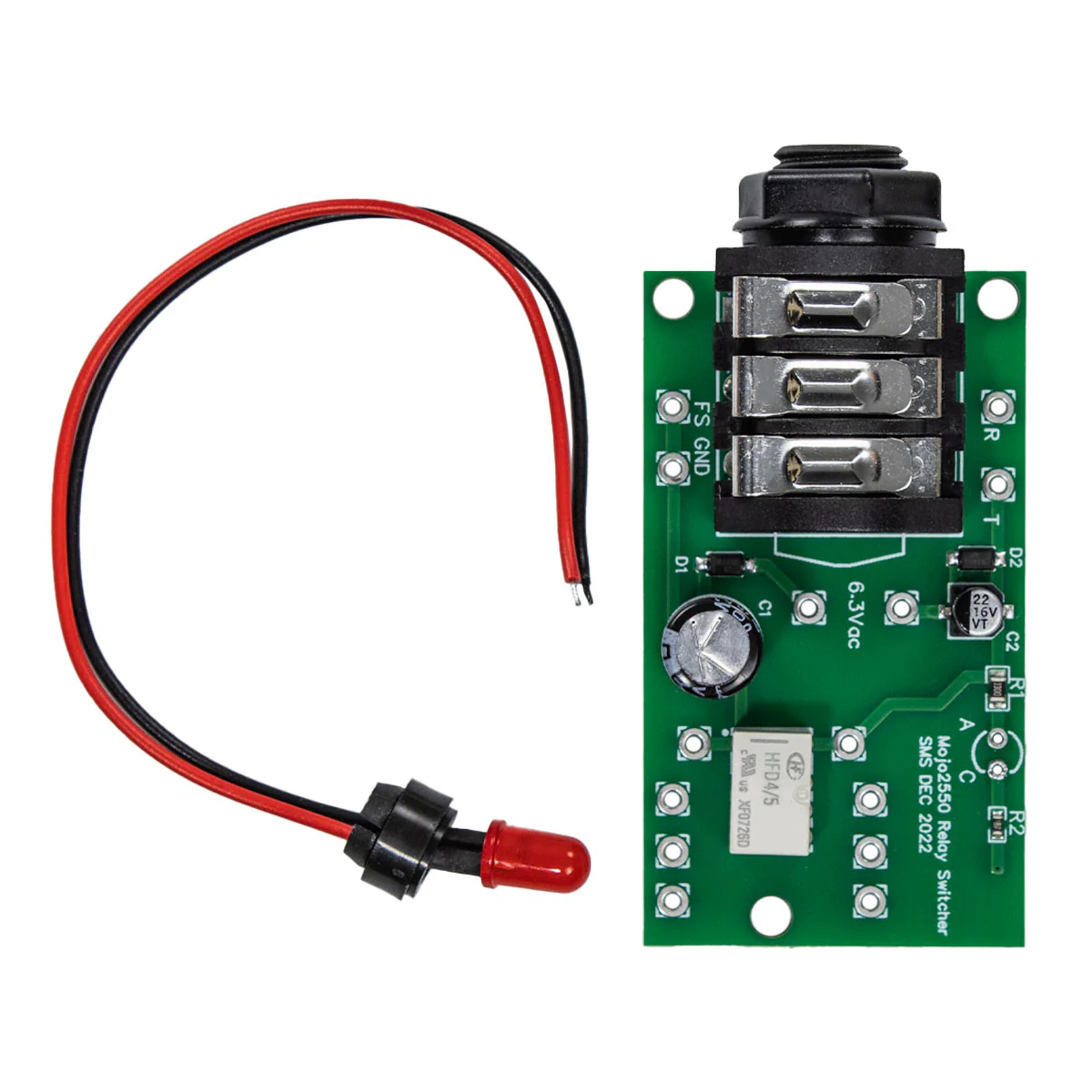

Mojotone Single Relay Switching Kit

• Can be powered off of the 6.3Vac filament taps in your amplifier for easy installation.
• Connections for indicator LED
• Board can be mounted directly to the chassis with standoffs or can install PC mount 1/4" mono or stereo jack
• Assembly / Instruction Manual
• Works with any ¼" phono plug footswitch that connects tip to ground
• The relay is a DPDT 5V consuming 140mW at the coil
• Switching contacts are rated for 1A at 30Vdc and 0.3A at 125Vac

Installation Note: When installing with 1/4" jack, make sure jack is insulated from chassis ground.
